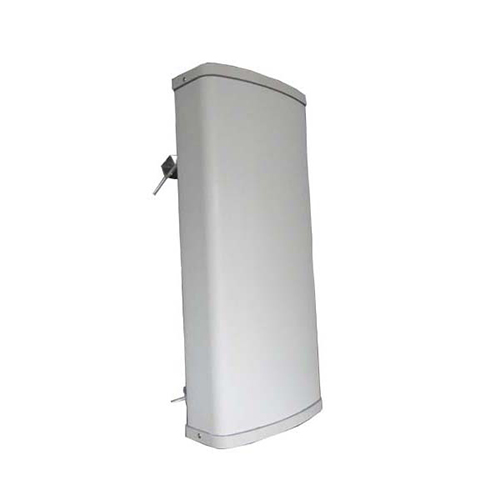

Brief introduction
*Size:600(L)*280 (W)*125(H)mm(not include holder)
*Frequency:806-960MHz
*Polarization: Vertical
*Weight：about 5.2KG
Product Features
*1.Super quality Antenna, Gain 12dBi
*2.Anti-interference, waterproof and dust proof
*3. widely used in Vehicle Tracking, intelligent transportation, warehouse management system
Specification
Model Number
RL-A812
Performance
Index
Frequency
806-960MHz
Input impedance
50ohm
VSWR
≤1.5
Front/Back Ratio ≥24
Connector
N Female
Polarization Vertical
V Beamwidth-°
30
H Beamwidth-°
65
Lighting Protection DC Grounding
Package Size
65 x 34.5 x 22cm
Gross Weight 6.2KG
Material
PVC
IP Grade IP-65
Work Temperature
-40°C--60°C
Max Wind resistance 60m/s

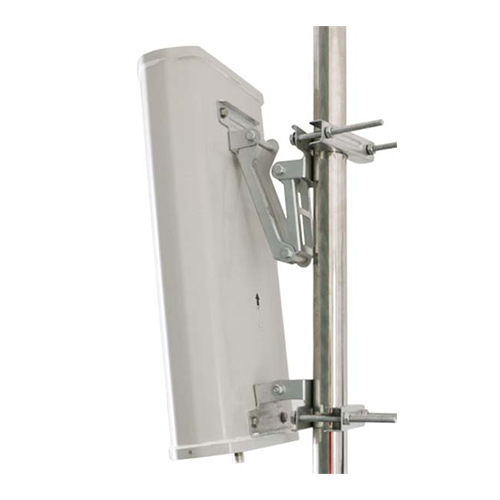

Installation
Screw，Bracket
