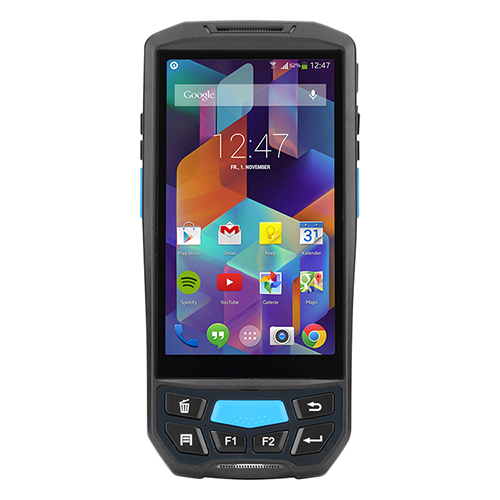

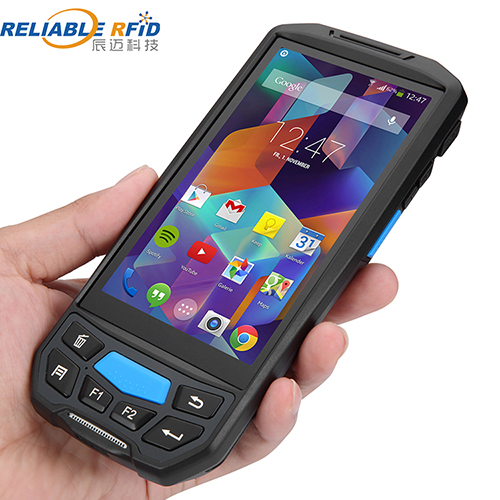

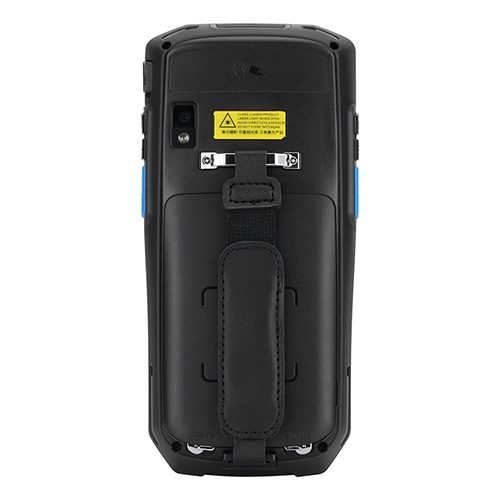

RL-H900 is an Android rugged Handheld Terminal PDA. high-performance, high-reliability industrial-grade handheld barcode data terminal based on the Android 8.1 operating system. It has strong and stable performance, light and durable appearance, and supports 1D/2D barcode scanning, UHF NFC and GPS. Positioning, photo taking, voice communication, Wi-Fi, Bluetooth, 2G/3G/4G and other functions.
Specification |
|
|
Model Number |
RL-H900 |
|
Performance Quad-core
|
||
CPU |
Cortex-A53 64bit Quad-core 1.3GHz |
|
RAM+ROM |
2GB+16GB |
|
Expansion |
Supports up to 32 GB Micro SD card |
|
Operating System |
Android 8.1 |
|
Octa-core |
|
|
CPU |
Cortex-A53 64bits Qcta-core 2.0GHz |
|
RAM+ROM |
2G+16G,Support 3+32G,4+64G |
|
Expansion |
Supports up to 128 GB Micro SD card |
|
Operating System |
Android 9.0 |
|
Data Communication |
||
WLAN |
2.4GHz+5GHz,Support IEEE802.11A/B/G Protocol |
|
FDD/TDD-LTE 4G |
FDD-LTE (B1/B2/B3/B5/B7/B8/B20)TDD-LTE (B38/B39/B40/B41)
|
|
WCDMA 3G |
WCDMA (850/900/1900/2100MHz) |
|
GSM 2G |
GSM(850/900/1800/1900MHz) |
|
Bluetooth |
Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
|
Physical Characteristics |
||
Dimensions 172mm(L) X 80mm(W) X 27mm(D) |
||
Weight <500g |
||
Display 5.0 inch IPS 720 * 1280 px with Multi-point touch capacitive screen |
||
Power Li-ion, rechargeable, 4800mAh |
||
Standby: over 72 hours
|
||
Continuous use: over 12 hours (depending on user environment) |
||
Charging time: 4-5 hours (with standard adaptor and USB cable)
|
||
Expansion Slot SIM card, , Micro SD (TF) Card |
||
Interfaces USB2.0 Device
|
||
Input Mode Standard Stylus, Handwriting, touching input or keyboard input
|
||
Keypad 13pcs soft silicon key |
||
Battery Capacity Rechargeable Li-polymer Battery 3.7V4800mAh |
||
User Environment |
|
|
Operating Temp. |
-4°F to 122°F / -20°C to 50°C |
|
Storage Temp. |
-40°F to 158°F / -40°C to 70°C |
|
Humidity |
5%RH - 95%RH non condensing |
|
Drop Specification |
Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range
|
|
|
||
Tumble Specification |
500 x 0.5m/1.6ft falls at room temperature |
|
Sealing |
IP-65 |
|
Data Collection |
||
Camera
|
8MP Autofocus with flash /Support auto - focus, flash, anti - shake, macro shooting
|
|
Barcode Scanning (Optional) |
||
1D Laser Scanner
|
Symbol 955, HoneywellN4313,Mingde966 |
|
Resolution |
4Mil minimum width |
|
Ambient Light |
10000ft.candles(107640 lux) |
|
Scanning Speed |
104(±)12/sec (bothway) |
|
Scanning Angle |
47o±35o(Standard) / 35o±3o(narrow angle) |
|
Support Bar Code Type |
UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, |
|
|
Discrete 2 of 5,Chinese 2 of 5, Coda bar, MSI, RSS |
|
2D CMOS Scanner |
Honeywell N6603,NewLand 3096
|
|
The Sensor Resolution |
752(level)×480(vertical)pels(gray level)
|
|
Ambient Light |
All dark 9000ft.candles/96900 lux |
|
focus element (VLD) |
655nm ± 10nm |
|
Support bar code type |
PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, |
|
|
micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, |
|
|
UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
|
|
|
|
LF RFID Reader(Optional) |
|
|
Frequency |
125kHz, 134kHz (FDX-B / HDX) |
|
Protocol |
ISO11784/5, ISO18000-2 |
|
Range |
3-8cm |
|
HF RFID Reader(Optional) |
|
|
Frequency |
13.56MHz |
|
Protocol |
ISO14443A/B,ISO15693 |
|
Range |
3-8cm |
|
UHF RFID Reader(Optional) |
|
|
Frequency |
865-868MHz,902-928MHz or customized |
|
Protocol |
EPC Gen2/ ISO18000-6C |
|
Antenna |
Linear polarization 1.8dBi, Circular polarization 2.5dBi |
|
Power |
1W (typical 24dBm, +10dBm to +30dBm) |
|
Range |
>1.5m(depend on tag and environment) |
|
Biometric Fingerprint (Optional) |
|
|
Sensor |
TCS2SS |
|
Sensor type |
Capacitive Sensor |
|
Function |
Enrollment, compare, deletion etc |
|
Resolution |
508DPI |
|
Memory |
1000pcs Fingerprints |
|
NFC (optional) |
|
|
Frequency 13.56MHz
Protocol ISO/IEC 18092 (ECMA 340)
Range 2-4cm
Accessories |
Standard AC Adaptor, USB Cable, etc. |
Optional Cradle, etc. |
