UHF Anti-Metal Tag

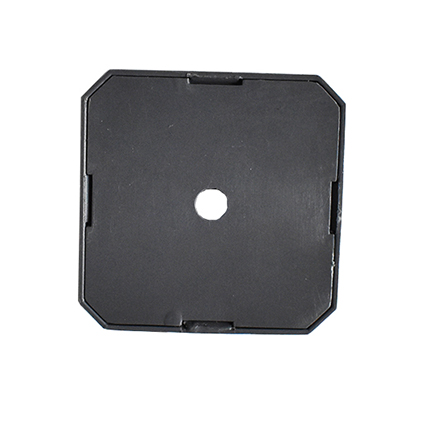

865-928MHz Small Size UHF RFID on Metal Hard Tag

865-928MHz Small Size UHF RFID on Metal Hard Tag

Frequency:865-928MHz
Chip:Impinj M4QT
Read distance:2-5m
Memory:EPC 128bits,User 512bits
Product description: Small size UHF RFID On Metal tag
INQUIRY

865-928MHz Small Size UHF RFID on Metal Hard Tag-Order Now

*Size:30(L)*30 (W)*6(H)mm

*Frequency:865-928MHz
*Protocol:ISO18000-6C
*Chip: Impinj Monza 4QT
*1. Impinj M4QT Chip to achieve best reading effect;
*2.Linear Antenna design to achieve best sensitivity;
*3. EPC:128bits;user 512bit;

Model number	RL-TM51
Performance Index
Material	ABS
Size/Weight	30(L)30 (W)6(H)mm /4.3g
Read Distance	3-5m（depend on reader and environment）
Drop Test 1m height, 200 times passed.
Acid/alkali Resistant	Can Resist PH=5～10
Gasoline/alcohol Test 92# gasoline wiped and 95% alcohol test. Passed
IP Grade	IP-55
Data storage/erasable	More than 10 years/more than 100000times
Storage/work Temp.	-25°C--85°C/-35°C--70°C
Other Craft	Encoding, Laser mark barcode or QR code, Serial number
Installation	Screws, Rivets, adhesive(not include)
Package	Carton box 360260100mm/180pcs,5KG
Application	metal container, power facility, Wagon Tracking, Storage shelves
