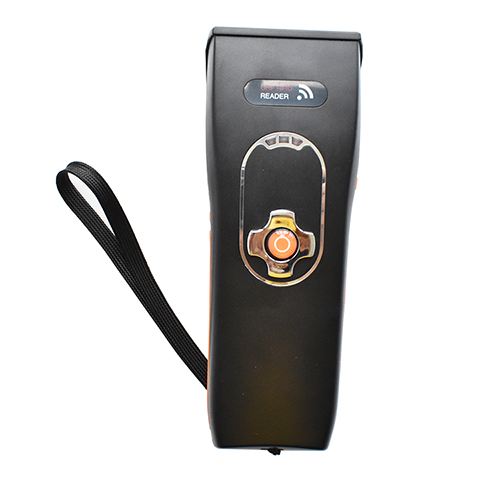

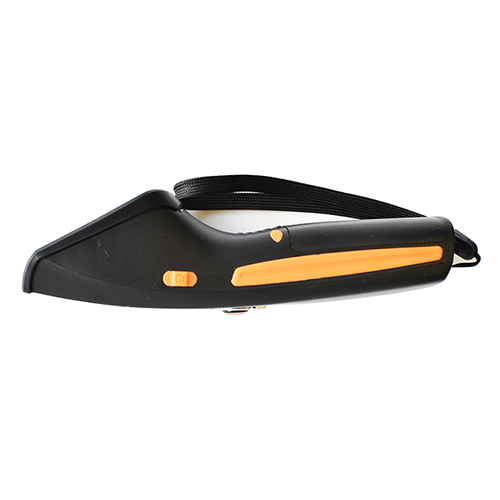

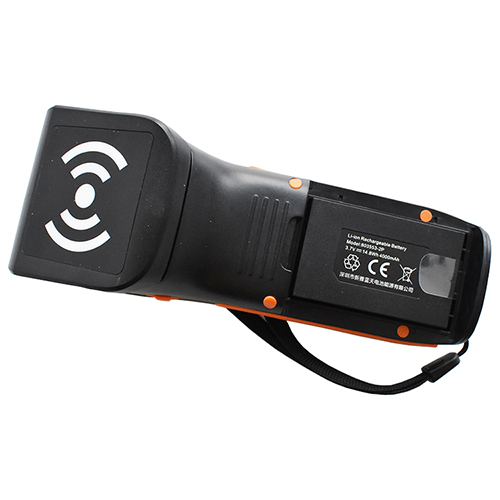

UHF Handheld Reader

Asset Inventory Management UHF RFID Bluetooth Reader

Features

1. Save repeat purchase cost by operation online with available PDA, smart phone and tablet PC via Bluetooth communication;

2. Support reading/writing electronic tags up to ISO-18000-6B,ISO-18000-6C(EPC G2);

3. Easy to read tags and meanwhile easy to check/confirm on PDA screen;

4. Low cost, more economical than handheld reader integrating with PDA;

5. Reliable industrial structure design, workable in varied severe environment.

Specification
Model Number	RL-75
Performance Index
Frequency	902-928MHz/865-868MHz or Customized
RF output	30dBm, Can be adjustable
Read distance(2W ERP)	＞Read >150cm, Write >20cm(With Standard RFID Card)
Communication Interface: USB1.1, Bluetooth IEEE802.15 ( rate 1Mbps)
Size	180(L)55 (W)30(H)mm
Power supply Rechargeable Li-ion polymer battery (3.7V,3200mAh)
Reading instructions	Vibration motor, Buzzer, LED
Memory Card	2GB(Mini SD)
Standby time	150 hours, scan times for Full charging: 5000
Weight	250g
Protection grade	IP56
Work temperature	-20 ºC to +50 ºC
