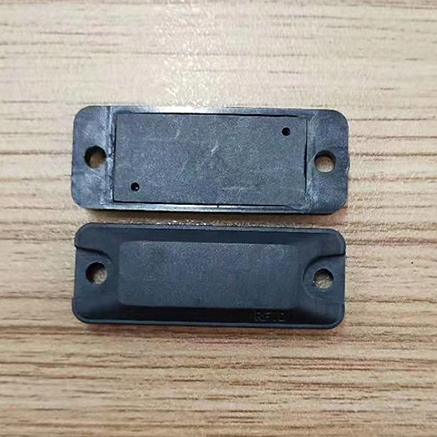

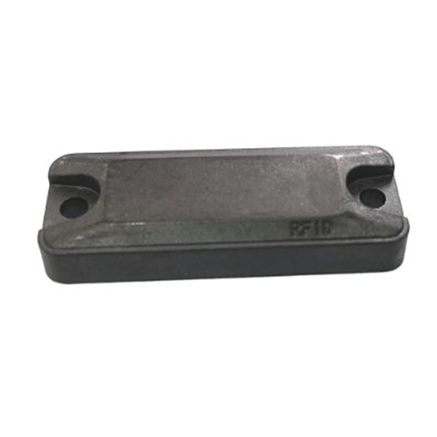

UHF Anti-Metal Tag

200°C High Temperature Resistant UHF RFID Anti Metal Tag

200°C High Temperature Resistant UHF RFID Anti Metal Tag-Order Now

Brief introduction

*Size: 37(L)*14(W)*5.9(H)mm

*Frequency:865-868MHz/902-928MHz

*Protocol:ISO18000-6C

*Chip: Alien H3

Product Features

*1. Alien H3 Chip to achieve best reading effect;

*2.Linear Antenna design to achieve best sensitivity;

*3.can support 200°C high Temperature;

*4.Application: high temperature metal environment.

Specification
Model number	RL-TM37
Performance Index
Material	Engineering plastic+ Special Ceramic
Size	37(L)14(W)5.9(H)mm/10g;hole diameter:3mm, hold distance 30.9mm
Chip	Alien H3
Chip Storage EPC 96bits, User 512bits
Frequency	865-868MHz，902-928MHz
Read Distance 3m（4W Alien 9900 Fixed Reader）;1m(Alien 9001 handheld reader)
IP Grade	IP67
Data storage	More than 10 years
Data erasable	More than 100000times
Work Temperature	-25°C--115°C
Storage Temperature	-45°C--200°C when temperature more than 70°C，the read distance will reduction, when temperature dropped, the read distance will recover
Alcohol test	95% Alcohol Test: Pass
Gasoline Test	92# Gasoline wiped: Pass
High-Low Temperature Test	-40°C---+150°C，high-low alternating cycles, 2days. Pass
ROHS	Pass
Ultrasonic Cleaning Test	Pass
Other Craft	Encoding, Laser mark, back adhesive(not support 100°C application)
Installation	M3.0 or M2.5 Screw, Rivet ;back adhesive(option)
