UHF Anti-Metal Tag

Flexible UHF RFID on Metal Tag

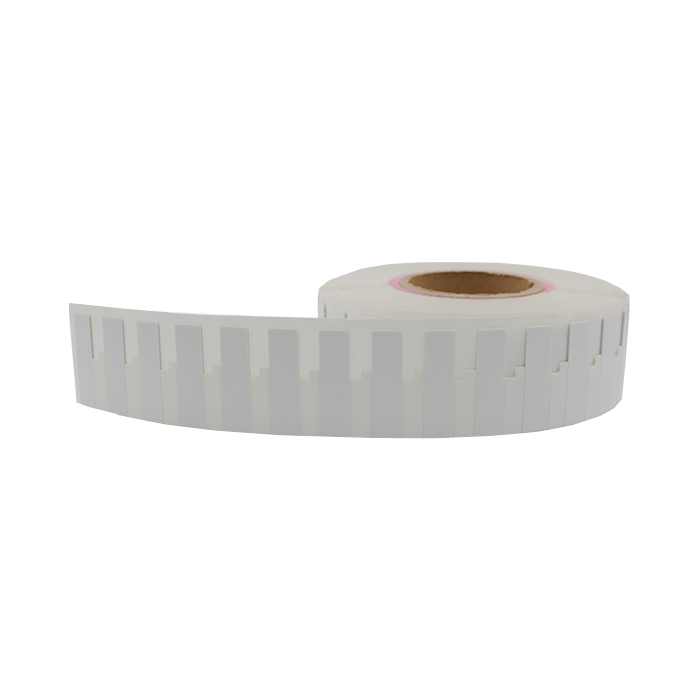

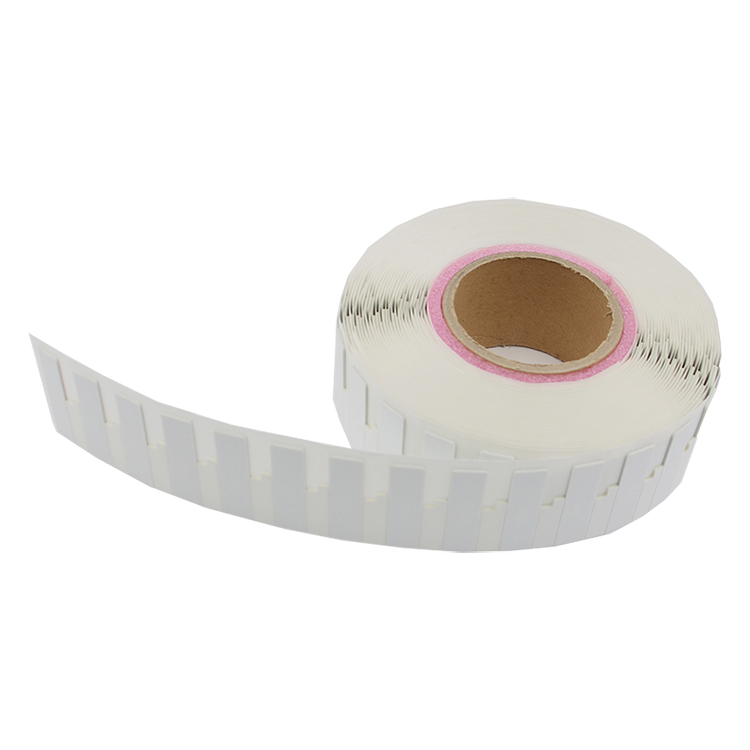

Product description: Soft Flexible Printable On Metal UHF Rfid Label Sticker Tags
INQUIRY

Soft Flexible Printable On Metal UHF Rfid Label Sticker Tags

This RFID metal label tag is excellent option for indoor applications that demand flexibility and affordability with low cost.As it’s flexible,very suitable for flat or curved metal surface,such as Laptop,tablet PC, steel boiler, metal container,steel pipe,etc.The label could be printed and encoded via RFID printer at the same time,such as Zebra ZT410 Silverline,Sato CL4NX,Printronix T4000,Postek Tx3r,etc.The read range up to 3 meters with small size

Physical Features:
Model:	TF5515
Material:	PET/Aluminum Foil/Foam
Dimensions:	55x15x1.25mm(LxWxT)
Working Temp:	-40~+85℃
Survive Temp:	-40~+120℃
IP Rating:	IP68,test for 5 hours at 1m deep water
RFID Features:
RFID Standard:	EPC C1G2 (ISO18000-6C)
Chip Type:	NXP Ucode 8
EPC Memory:	128bits
TID Memory:	96bits
Read Range(FCC Fixed Reader):	7.4m,on metal
Read Range(FCC Fixed Reader):	3.5m,in air
Read Range(FCC Handheld Reader):	4.0m,on metal
Read Range(FCC Handheld Reader):	1.5m,in air
Other Features:
Data Storage:	> 10 years
Re-write:	100,000 times
Installation:	Adhesive
Support Printer:	SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc.
Customization:	Logo,barcode/QR code,number printing,encoding, design,etc.
Package:	Reel core inner dimension: 76.2mm/ 3” , 500pcs/roll.
Application:	Metallic container tracking \| Equipment&device tracking \| Warehouse shelf \| Automotive components tracking \| IT asset tracking, etc.
