UHF RFID Antenna

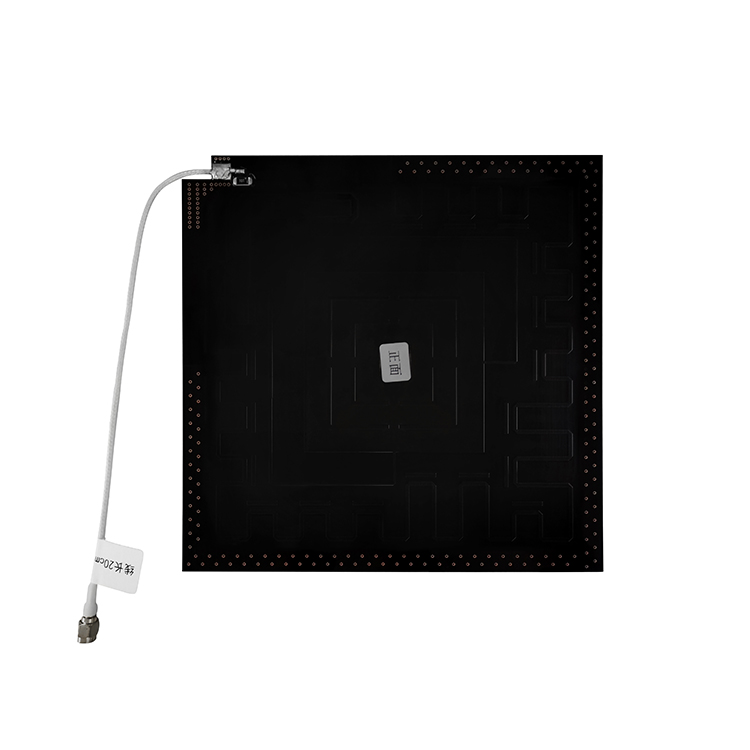

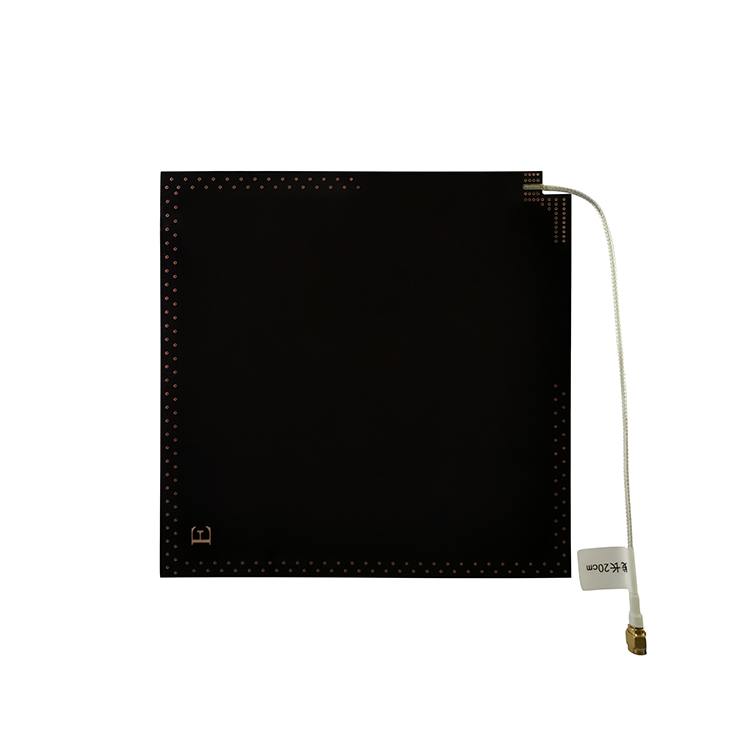

PCB UHF RFID Near Field Antenna

  • Frequency:865-868MHz/902-928MHz
  • Gain:<3dBi
  • Polarization: Circular
  • Connector:SMA Female
  • Product description: UHF RFID PCB Short range Near Field Antenna
  • INQUIRY

18X18CM Super Thin Ultra-Low Profile UHF RFID Near Field Short Range Antenna

Overview - Circular Near Field RFID Antenna, 902 - 928 MHz (US) and 865 - 868 MHz (EU) (region specific), SMA female side fly lead (200 mm / 1 ft.) and cable , operates at 902 - 928MHz. This antenna has opened up new possibilities for item level RFID tracking where a short range read is required. The  antenna offers outstanding near field performance in a unique and optimized footprint, improving workflow and eliminating stray tag reads.


Introduction

This antenna is ideal choice to be applied to real time inventory for warehouse management system.

PCB board structure, direct grounding protection, Cicular  polarization, with leads to the cable, convenient layout.


Features:

Small Size

Superior performance

PCB Material

Model RL-AN30
Weight 0.15KG
Size 300(L)*300(W)*6(H)mm,Other size:180X180X6mm
Frequnecy 865-868MHz, 902-928MHz
Gain 3dBi
Polarization Circular
VSWR 1.5
Work Teperature -40ºC to+60ºC
Storage Temp. -40ºC to+80ºC
Connector SMA Female
IP grade IP-54
Feature Small Size,Superior performance,PCB Material
Application Asset management,production line management,warehouse management
